Get Lowest Price

New 2025 Leisure Travel Wonder 24RL

Motor Home Class B+

Stock #W24RLMT

Kalispell, MT

Deposits Accepted

1 of 19

+19

Specifications

Sleeps	2	Length	24 ft 9 in
Ext Width	7 ft 11 in	Ext Height	10 ft
Int Height	6 ft 5 in	Interior Color	Fog, Earth, Mountain
Exterior Color	Champagne, Denim, Euro Sport, Glacier, Graphite, Silver, White Suede	GVWR	11000 lbs
Fresh Water Capacity	33.5 gals	Grey Water Capacity	26.4 gals
Black Water Capacity	35 gals	Furnace BTU	20000 btu
Generator	4.0KW Gas	Fuel Type	Gas
Engine	3.5L Eco-Boost V6	Chassis	Ford Transit Dual Rear Wheel
Horsepower	310 hp	Fuel Capacity	25 gals
Wheelbase	178 in	Available Beds	Murphy
Torque	400 ft-lb	Refrigerator Type	Double Door Three Way
Refrigerator Size	6.7 cu ft	Convection Cooking	Yes
Number of Awnings	1	LP Tank Capacity	13.2 gals
Water Heater Type	Truma AquaGo Comfort Plus	AC BTU	15000 btu
Basement Storage	15 cu. ft.	TV Info	Two 27" TVs
Awning Info	Powered Box w/LED Lights	Shower Type	Standard
Electrical Service	30 amp	VIN	TBD

Description

Leisure Travel Wonder Class B+ gas motorhome 24RL highlights:

Rear Lounge with Footrests
Manual Murphy Bed
Separate Lavatory and Shower
Swivel Captain's Chairs
Removable Front Dinette
Pull-Out Pantry

This coach combines comfort with versatility and convenience allowing you to travel wherever and whenever you want with your three favorite people! You will find seatbelts for four, a rear Murphy bed, and a removable front dinette area with an optional bed to sleep four. The rear offers a residential-style sectional lounge sofa with footrests and a swivel table to create a work station or another dining space. There are floor-to-ceiling windows for great views and natural lighting, and a 58" x 74" Murphy bed system giving you comfortable sleeping space at night. The galley offers a flip-down extension for more prep and serving space, a convection microwave oven, a flush mount LP cooktop with hinged glass cover, a garbage can, a pull-out pantry, and more to enjoy cooking while on the go. This unit is also available with optional intelligent All-Wheel Drive (AWD).

With any Leisure Travel Wonder Class B+ gas motorhome, the construction includes vacuum bonded aluminum framed insulated contoured sidewalls and a domed roof with fiberglass exterior, and a floor with composite exterior on a Ford Transit cutaway T-350 chassis. Some highlights include the 16" heavy-duty forged aluminum wheels, the auto high-beam headlamps, and the advance active safety features. The interior offers the SYNC 4 navigation system, curved soft close overhead cabinetry doors with hidden catches, full extension ball bearing soft close drawer tracks, LED aisle lighting and above cabinet hidden accent lights, and tile look vinyl flooring throughout for style and easy care. Don't just wonder where you want to go in style and luxury, choose your favorite Wonder coach and head out!

Call Us at 406-755-1915

Features

Standard Features (2025)

Chassis

Ford Transit Dual Rear Wheel Chassis (178" Wheelbase/11,000 lb. GVWR), 3.5 L Eco-Boost V6 Gas (310 HP/400 ft.·lb. Torque) with 10-Speed Automatic Transmission, Tow Haul Mode. Available with Optional Intelligent All-Wheel Drive (AWD).
Adaptive Cruise Control
Air Conditioning
Alternator - 250 A
Aluminum Alloy Wheels
Concealed Locking Fuel Filler
Driver and Passenger Exterior Courtesy Light
Fog Lamps
HID Headlamps
Illuminated Sun Visors
Leather-Wrapped Multifunctional Steering Wheel with Tilt/Telescopic Function
Post-Collison Braking, Pre-Collision Assist with Auto Emergency Braking, Auto High Beam Headlamps, Lane Keeping System, Forward Collision Warning and Side Curtain Airbag
Power Windows and Door Locks
Power/Heated Exterior Mirrors with Convex and Turn Signal
Privacy Drape in Cab
Rear Hitch Receiver with 7-Pin Connector
Rear View Mirror
Removable Carpeted Floor Mat
SYNC® 4 12" Touchscreen Multimedia Center with AM/FM/SiriusXM/Navigation/Rear View Camera
Tire Pressure Monitoring System
Ultraleather® Cab Seats with Armrests/Adjustable Lumbar Support/Recline, 4-way Manual, Swivel Bases

*Note: Due to ongoing supply constraints, some Ford Transit features shown may not be available on all chassis.

Vehicular

Powder Coated Steel and Aluminum Undercarriage Support Structure

Construction

Frameless Tinted All Glass Awning Style Windows
Vacuum Bonded Aluminum Framed Insulated Contoured Sidewalls with Fiberglass Exterior
Vacuum Bonded Aluminum Framed Insulated Domed Roof with Fiberglass Exterior
Vacuum Bonded Aluminum Framed Insulated Floor with Composite Exterior

Exterior

Chrome Automotive Style “LTV” Branding
Contoured Entrance Door with Screen Door and Window
Contoured Fiberglass Baggage Doors with Top Continuous Hinge and Draw Tight Latches
Illuminated Assist Handle
Large Exterior Storage Compartment with Lights (MBL)
Large Pass Through Exterior Storage Compartment with Bicycle/Cargo Slide (RTB)
LED Patio Light
Painted Color Matched Front Bumper
Painted Fiberglass Running Boards and Flares
Painted Full Body with Clear Coat
Powered Retractable Entrance Step
Water Pump Switch in Utility Center

Interior

Coach Floor Extension
Curved Soft Close Overhead Cabinetry Doors with Hidden Catch
Dry Chemical Fire Extinguisher
Full Extension Ball Bearing Soft Close Drawer Tracks
Illuminated Assist Handle
LED Aisle Lighting and Above Cabinet Hidden Accent Lights
LED Ceiling Lighting with Dimmer in Bedroom and Living Areas
LED Recessed Strip Lighting Under Overhead Cabinets
Opening Skylight with Screen and Shade
Roller Shades
Smoke, LP and CO Detectors
Soft Vinyl Ceiling Headliner
Tile Look Vinyl Flooring Throughout

Furniture

Ultrafabrics® Dinette with Flexible Seating/Dining Arrangements (RL, RTB)
Ultrafabrics® Leisure Lounge System Dinette with 2 Power Recliners and Easy Lift Table (MBL)
Ultrafabrics® Rear Sofa with 2 Recliners (RL)

Galley

Accessory Rail
Built-In Dish Drainer (MBL)
Compressor Refrigerator Freezer – Double Door, 6.2 ft³
Contoured Solid Surface Corian® Countertop
Convection Microwave Oven
Countertop Extension (RL, RTB)
Countertop Small Appliance Storage Compartment (MBL)
Flush Mount LP Cooktop with Hinged Glass Cover
Garbage Can
Pull-Out Pantry
Stainless Steel Backsplash
Stainless Steel Undermount Sink with Sink Cover

Lavatory

Accessory Rail
Ceramic Macerator Toilet
Curved Glass Shower Door (MBL)
Flip Down Towel Bar in Shower
Grab Handle in Shower
Medicine Cabinet (RL, RTB)
Retractable Self-Cleaning Shower Screen (RL, RTB)
Robe Hook in Shower
Shower Skylight
Shower with Integrated Storage
Stainless Steel Undermount Sink
Water Pump Switch in Lavatory

Entertainment

Exterior Cable TV Hookup
Mobile Data/WiFi Extender with Integrated TV Antenna
Satellite Dish Pre-Wire
USB Outlets in Bed and Living Areas

Heating, Ventilating, and Air Conditioning

Air Conditioner – Truma Aventa Eco 13,500 BTU Ducted
Furnace – 19,000 BTU (RL, RTB)
Furnace – Truma Varioheat (MBL)
Lavatory Fan and Galley Fan

Electrical

120-V GFCI Protected Receptacles (Patio, Galley, and Lavatory)
12-V Battery Disconnect
3000-W Pure Sine Inverter with up to 150-A Battery Charger
30' Power Cord – 30 A
Battery – 270-Ah 12-V Smart Lithium with Internal Heating System
Generator – 4.0 kW Gas with Auto Start and Auto Changeover Switch
Multiplex Wiring Control System
Rear Storage 12-V Power Receptacle (RTB)
Surge Protector with Transfer Switch

Plumbing and LP Systems

Antifreeze Pick Up Kit
Black Tank Flushing System
Contained Sewer Hose
Exterior Shower
In-line Shower Vacuum Breaker
Liquid Propane Tank
Multiple Water Pump Switches
Quick-Connect Exterior Accessory LP Outlet
Tank Level and Battery Voltage Monitoring
Truma AquaGo Comfort Plus Water Heater
Water Filtration System
Water Heater Bypass Valve
Water Selector Valve (City Water or Water Tank Fill)

Awnings Packages

Powered Legless Box Awning with Wind Sensor and LED Lights
Slide Topper Awning (MBL)

Certifications

Canadian Certification – Mandatory for Canada (Optional)
RVIA Certification

Optional Equipment

60th Anniversary Edition Decor Package
AWD – Ford Transit Chassis with Intelligent All-Wheel Drive
Battery Upgrade – Additional 270-Ah 12-V Smart Lithium with Internal Heating System (540-Ah total)
Exterior Ladder
Exterior Table
Front Dinette Inflatable Mattress Kit (RL, RTB)
Integrated Shower Vacuum Breaker
Keyless Coach Entrance Door with Remote Fob
Macerator – Termination with Manual Disconnect
Overhead Cabinet Door Upgrade – Bianco White FENIX® Matte
Removable Front Table between Captain’s Chairs (MBL)
Satellite – Auto Acquisition Winegard Road Trip 4 (DirectSD, DishHD, BellHD)
Solar Panels – 200-W Rigid Low-Profile with Control Panel
Solar Panels – 400-W Rigid Low-Profile with Control Panel

All standard features and specifications are subject to change.

All warranty info is typically reserved for new units and is subject to specific terms and conditions. See us for more details.

Due to the current environment, our features and options are subject to change due to material availability.

Favorite RVs

Save your favorite RVs as you browse. Begin with this one!

Propane wouldn't flow
Nina was very helpful getting my part sent over night and the guys in the shop go it right on! Very class act thanks again!!!

Mark from Creekside, PA
Slide-out wouldn’t work
Throughout the entire process, from scheduling service to completion, Nina expressed complete confidence that her technicians would resolve the slide-out issue and would do so in specified period of time. And they did exactly that. Then once service was complete Clint explained what was done and then

Cindy from Wickenburg, AZ
Exceptional Customer Service
My wife and I contacted VanCity RV Kalispell for de-winterization service and we also had several questions regarding the 2010 Unity LTV RV we recently acquired. Kari, the office manager, was very kind and accommodating. She scheduled service and arranged for the Sales Manager to help us with our questions.

Tom from Whitefish, MT

We are here to help, call us at
406-755-1915 or Contact Us

We are here to help!

406-755-1915
Contact Us
Get Lowest Price

Van City RV is not responsible for any misprints, typos, or errors found in our website pages. Any price listed excludes sales tax, registration tags, and delivery fees. Manufacturer pictures, specifications, and features may be used in place of actual units on our lot. Please contact us at 800-467-3905 for availability as our inventory changes rapidly. All calculated payments are an estimate only and do not constitute a commitment that financing or a specific interest rate or term is available.

Manufacturer and/or stock photographs may be used and may not be representative of the particular unit being viewed. Where an image has a stock image indicator, please confirm specific unit details with your dealer representative.

New 2025 Leisure Travel Wonder 24RL

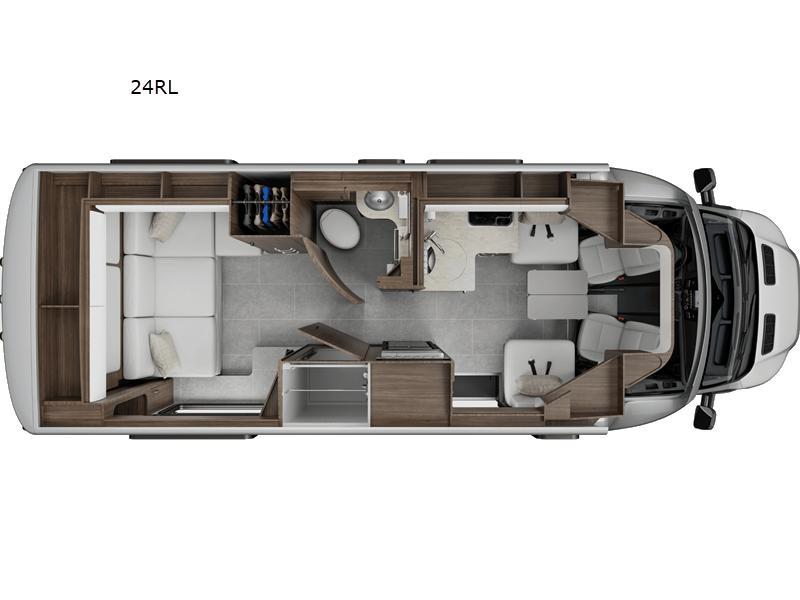

24RL Floorplan
