New 2025 Storyteller Overland GXV Hilt Std. Model

Adventure Truck Camper

Stock #6739

Colorado Springs, CO

NEW ARRIVAL

1 of 47

+47

Specifications

Sleeps	4	Length	27 ft
Ext Width	8 ft	Ext Height	12 ft 7 in
Exterior Color	CEMENT	Fresh Water Capacity	120 gals
Grey Water Capacity	40 gals	Furnace BTU	10000 btu
Fuel Type	Diesel	Miles	300
Engine	6.7L Cummins Turbo	Chassis	Ram 5500
Horsepower	360 hp	Fuel Capacity	52 gals
Wheelbase	800 in	Available Beds	Queen
Refrigerator Type	Stainless Steel	Refrigerator Size	4.6 cu ft
Convection Cooking	Yes	Cooktop Burners	2
Number of Awnings	1	AC BTU	15000 btu
Awning Info	13' Dual Pitch	VIN	3C7WRNFL4RG146721

Description

Storyteller Overland GXV Hilt adventure truck highlights:

U-Shaped Dinette
Loft Bed
Induction Cooktop
Pass-Through Door

Rugged on the outside, refined on the inside is what you will find with this adventure truck! Enjoy home cooked meals in the wilderness with the stainless steel convection oven, microwave, air fryer, and 1800 watt dual burner induction cooktop, plus a stainless steel 4.6 cu. ft. fridge/freezer. The U-shaped dinette is great for gathering around together during the day and at night it can transform into an extra sleeping space. Fall asleep under the stars with the loft queen bed which has a window right above it for your viewing pleasure and 3.7 cu. ft. of total bin storage below it. It also has 12V USBs, 110V outlets, and wireless charging stations next to the bed. Freshen up each morning in the spacious wet bathroom with 6' 5" of standing room and 120 gallons of fresh water on board!

The Storyteller Overland GXV Hilt adventure truck is upping the game on quality while also lowering the barrier to entry price! What sets these adventure trucks apart from regular truck campers is the camper is built directly onto the chassis of the truck for those who want an all-in-one vehicle. They are highly engineered with a Liquid Springs smart suspension system that optimizes your ride quality and handling characteristics for a peace of mind. The proprietary zero torsion subframe allows independent movement from the Ram 5500 chassis to reduce overall stress and improve off-road traction. Speaking of off-road, you can go off the grid thanks to the 1325W Merlin solar panels on the roof and the Lithionics 16.8 kWh M-power system comes with two 3,000W heavy-duty, high-efficiency inverters to power you to every adventure. Come see all of the other handy features they offer!

Call Us at 719-377-6999

Features

Standard Features (2025)

Ram Chassis Cab

5500 Crew Cab
6.7L Cummins Turbo Diesel
800 lb-ft torque / 360 hp
Cold weather group: engine block heater
Electrical accessory group: Voltage-Monitoring
Auto-Idle-Up System
Transfer case skid plate shield
6-Speed HD Transmission
Fuel Capacity: 52 gal
LED Headlamps / Tail Lamps
Laramie Level 2 Equipment Group:
Uconnect® 5 Nav with 12.0-Inch Touch Screen Display
17-Speaker Harman Kardon® Premium Sound
Door Trim Panel Foam Bottle Insert
Heated Second-Row Seats
Power Adjustable Pedals with Memory
Rain-Sensitive Windshield Wipers
Ventilated Front Seats
Ramcharger Wireless Charging Pad
Rubber floor mats
Rear backup camera
Normal Ride Setting:
- Approach Angle: 33.1°
- Departure Angle: 20.8°
- Breakover Angle: 10.8°
Ground Clearance:
- Front: 18"(DEF canister)
- Rear: 10.5"
High Ride Setting:
- Approach Angle: 36.3°
- Departure Angle: 21.5°
- Breakover Angle: 17°
- Ground Clearance:
  - Front: 22" (DEF canister)
  - Rear: 10.5"
Capacities
- Fuel: 52 gal
- Fresh water: 120 gal
- Grey water: 40 gal
- Black water cassette: 4.75 gal
- Batteries: 16.8 kWh
- (2) 3000W inverters
- Solar: 1325W
- Seating: 4 cab shoulder belts
- Sleeping: 2 queen beds

Exterior Features

Liquid Springs® Smart Suspension System:
- Liquid Springs Smart Suspension System evaluates speed, steering, braking and ride height 1,000x per second to automatically optimize your ride quality, handling characteristics, and peace of mind.
3 ride heights and 3 performance modes selectable on the fly
7.5” total travel
Hutchinson® wheels with 41” Multi Purpose Tires:
- 3 piece bead lock wheels capable of extremely low psi without de-beading
- Full-size spare with electric winch system
Onboard air system, dual air chucks with dual ARB compressors and 1 gal tank
Rugged custom Flarespace bumper
High pressure spray-on bedliner
20k lb. winch with synthetic rope
Extreme 360° lighting package:
- (8) 10” KC HiLiTES® perimeter light bars
- (5) 8” KC HiLiTES® front lights
- (2) bumper mounted KC HiLiTES® fog lights
- (2) bumper mounted KC HiLiTES® spot lights
(2) nVader rear storage racks
(3) Lockable cargo hatches and large lockable pass-through storage area
13’ Dual pitch awning
Automatic entry electric steps

Interior Features

Sleeps 4 adults:
- Rear dinette converts to queen size bed
- Queen size bed in front loft area
- Assist ladder for loft bed
Storage:
- 5 galley storage drawers and pull-out trash bin
- Upper cabinet storage
- Storage boxes in loft area with phone chargers
Touchless black cabinets with wood grain highlights
Gloss white walls
Dinette with seating for 4 adults
MISSION Control full color touchscreen display

Bath

120 gal fresh water, 40 gal grey water (electrically heated)
Wet bath with shower and sink
Flushable cassette toilet
Exhaust fan
Dry storage, mirror, retractable clothes line

Energy System

M-Power™ System, 16.8 kWh (powered by Lithionics®)
(2) 3000W inverters
High idle on RAMs
1325W MerlinTM solar panels
MISSION Control full color touchscreen display

Heating, Ventilation and Air Conditioning

10k Btu hydronic heat system with 2 air handlers
15k Btu A/C, Ducted Front and Rear
360° closed cell foam insulation
(2) deluxe exhaust fans w/ built-in rain guard
Wet bath exhaust fan

Safety

Smoke / CO Detector
Fire extinguisher
Ground fault circuit interrupter
Locking toilet cassette door

Please see us for a complete list of features and available options!

All standard features and specifications are subject to change.

All warranty info is typically reserved for new units and is subject to specific terms and conditions. See us for more details.

Due to the current environment, our features and options are subject to change due to material availability.

Favorite RVs

Save your favorite RVs as you browse. Begin with this one!

Best service support
Nina, Service Manager, is knowledgeable, thorough and very friendly. She found parts for our Dometic cooktop that aren’t made anymore. The service representative, Joshua was also very competent and knowledgeable, he did a terrific job making three minor repairs to our 2018 LTV FX and kept me advised

Bruce from Hidden Valley, CA
Easy and Stress Free!
My experience purchasing my Pleasure-way Lexor from Van City RV in Colorado Springs was easy and stress free. I highly recommend salesperson, Jill George!! She is very knowledgeable and walked me through the whole process. She obviously loves what she does and answered all my questions. I live in Texas,

Sharlet from Amarillo, TX
Impressive service department!
Everything webrought our RV in for got fixed, from some small minor things to a major propane issue. Comminication was timely. Personnel very friendly and professional. A special mention to Nina, in service department, who successfully fought with our warrenty company to cover all of the issues. A

Jeff from Las Vegas, NV

We are here to help, call us at
719-377-6999 or Contact Us

We are here to help!

719-377-6999
Contact Us
Get Lowest Price

Van City RV is not responsible for any misprints, typos, or errors found in our website pages. Any price listed excludes sales tax, registration tags, and delivery fees. Manufacturer pictures, specifications, and features may be used in place of actual units on our lot. Please contact us at 800-467-3905 for availability as our inventory changes rapidly. All calculated payments are an estimate only and do not constitute a commitment that financing or a specific interest rate or term is available.

Manufacturer and/or stock photographs may be used and may not be representative of the particular unit being viewed. Where an image has a stock image indicator, please confirm specific unit details with your dealer representative.

New 2025 Storyteller Overland GXV Hilt Std. Model

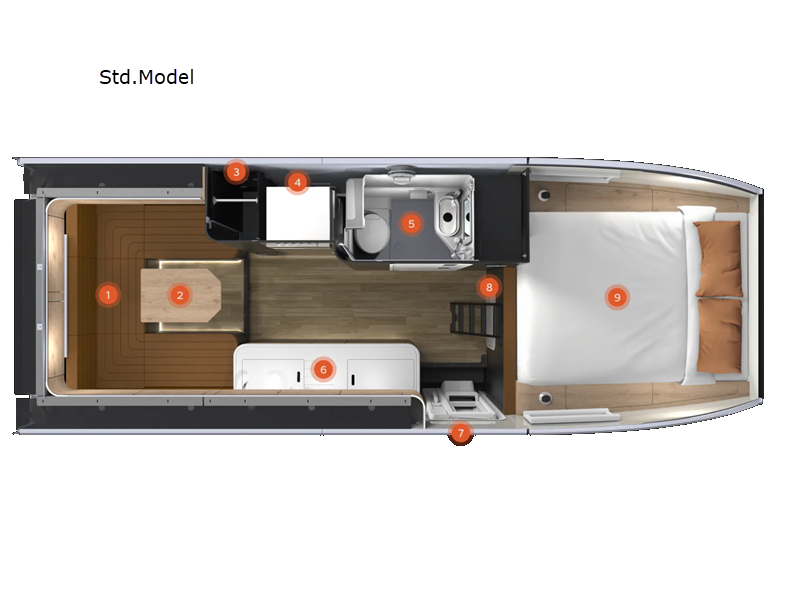

Std. Model Floorplan
